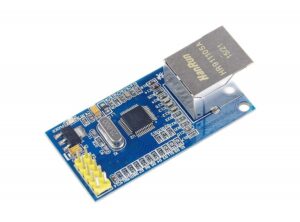

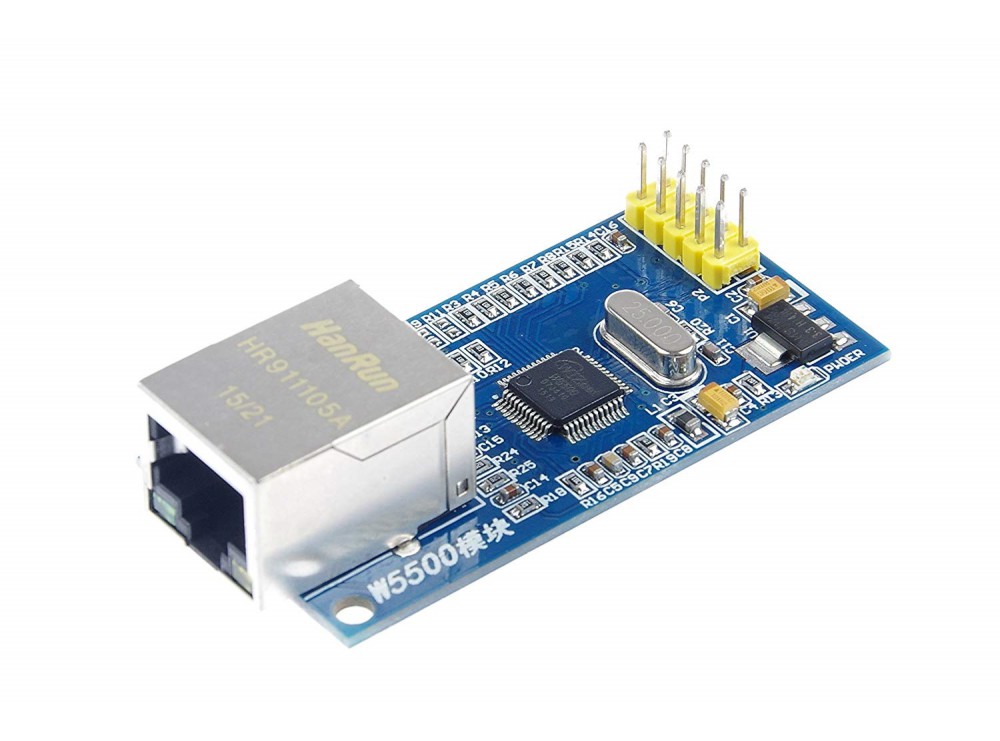

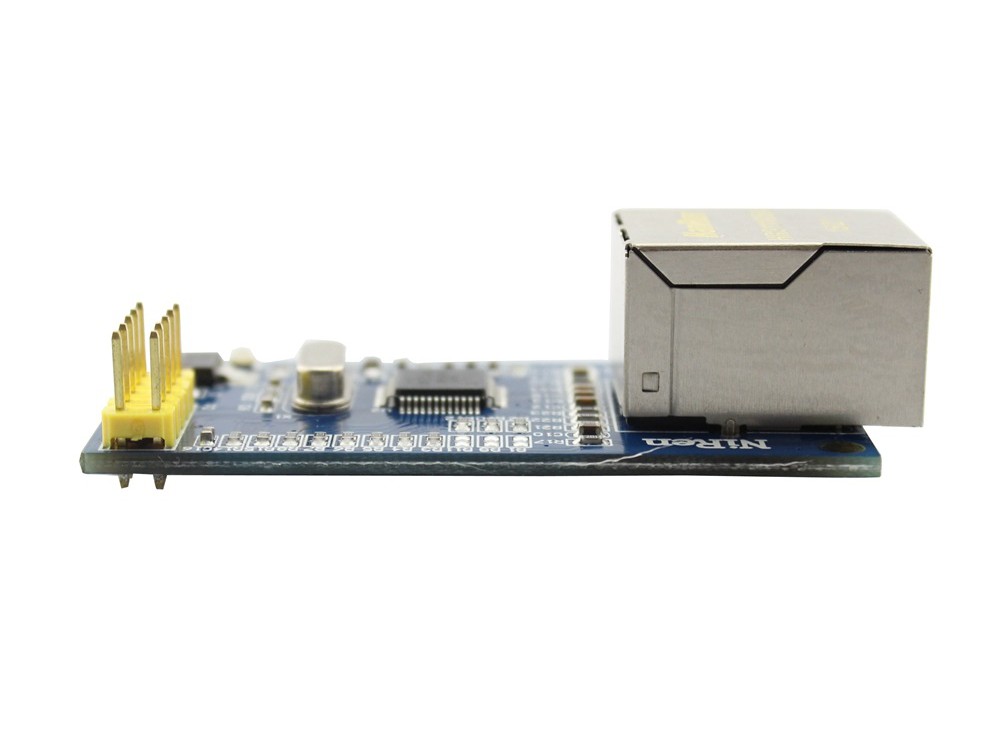

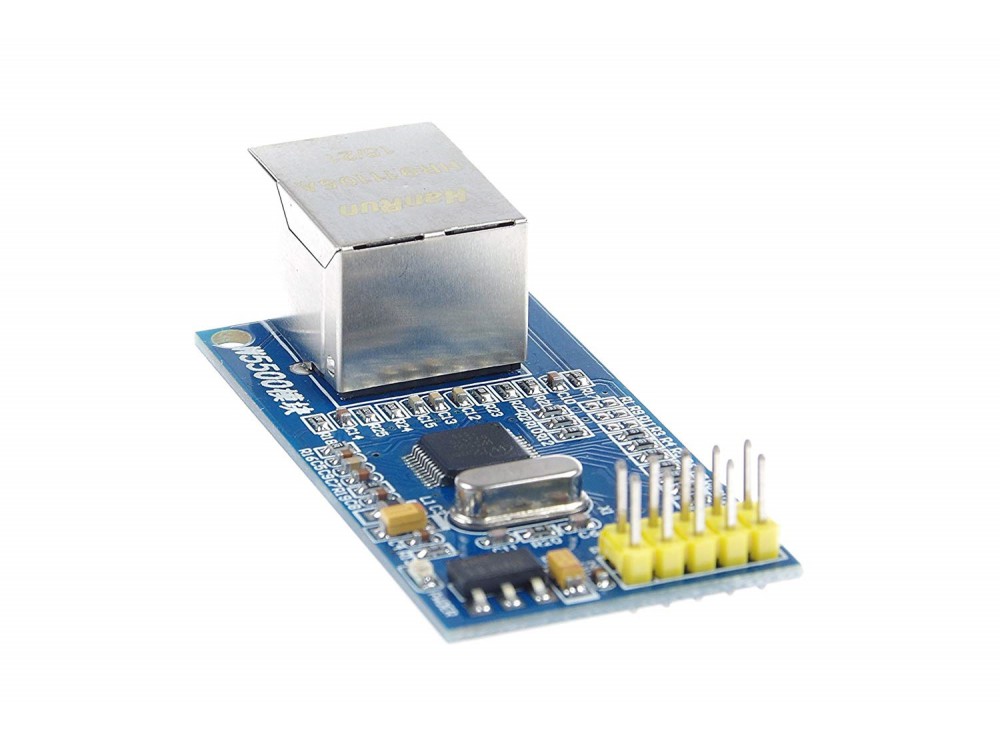

ماژول شبکه W5500 دارای ارتباط SPI

Applications

Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
Parallel-to-Ethernet: POS / Mini Printers, Copiers
USB-to-Ethernet: Storage Devices, Network Printers
GPIO-to-Ethernet: Home Network Sensors
Security Systems: DVRs, Network Cameras, Kiosks
Factory and Building Automation
Medical Monitoring Equipment
Embedded Servers

Specification

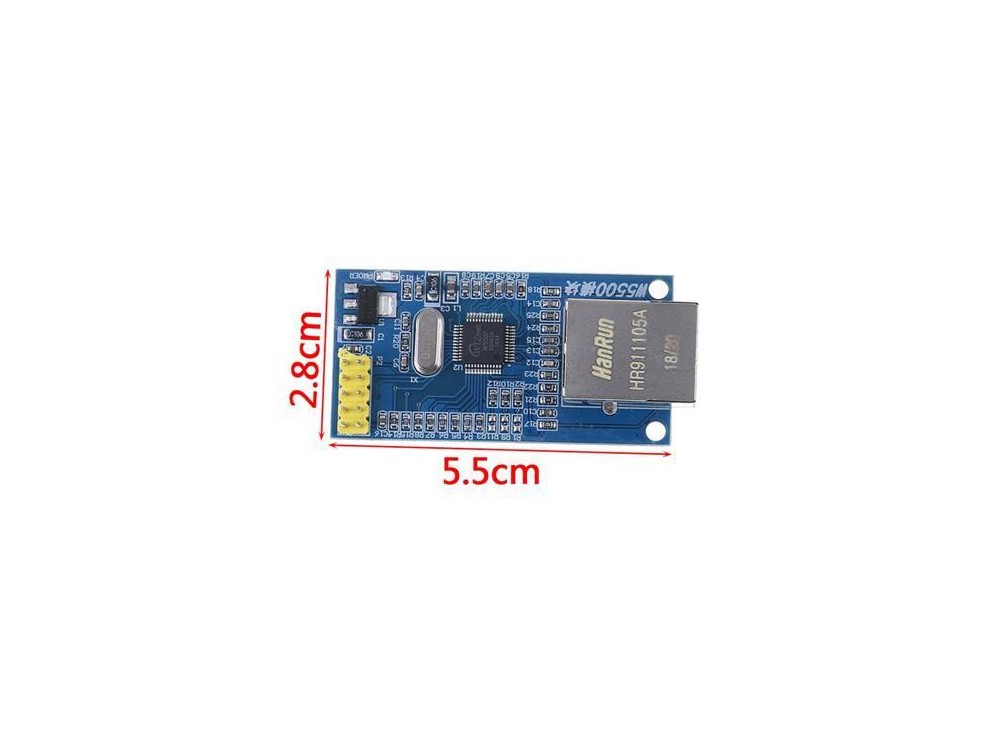

Module size: 55mm x 28mm
Power supply: 3.3v /5v
SPI clock frequency(MAX): 80M
Work current(Typ): 128mA
Supports following Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power-down mode
Supports Wake on LAN over UDP

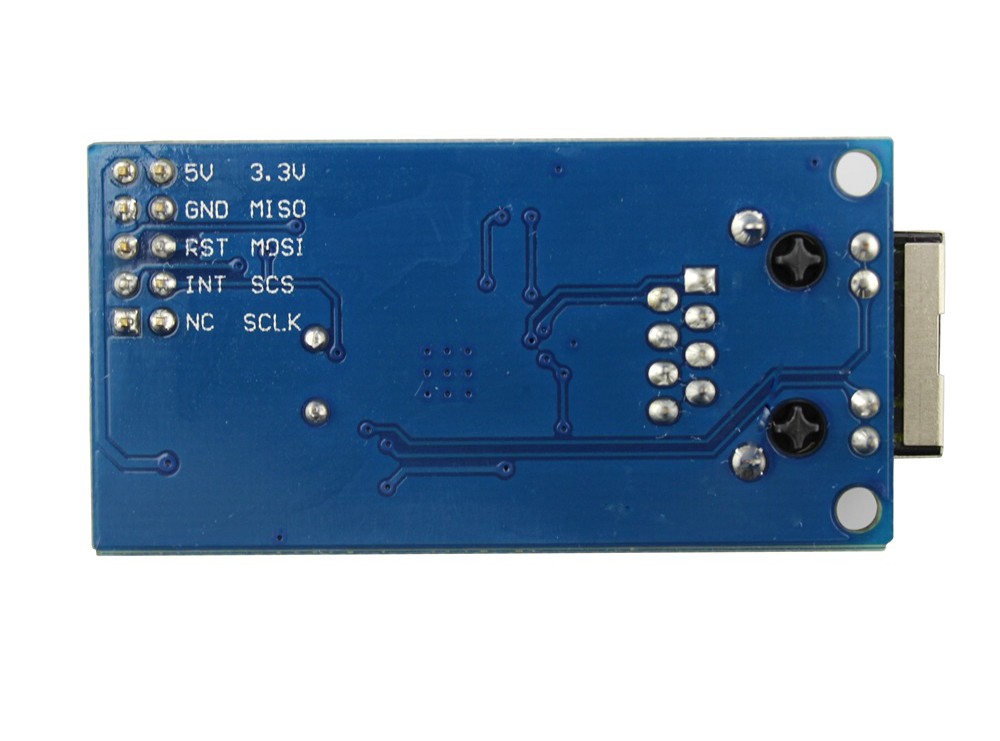

Supports High-Speed Serial Peripheral Interface(SPI MODE 0, 3)
Internal 32Kbytes Memory for Tx/Rx Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Support Auto-Negotiation (Full and half-duplex, 10 and 100-based)
Not support IP Fragmentation
LED outputs (Full/Half duplex, Link, Speed, Active)
10BaseT/100BaseTX Ethernet PHY embedded.
Supports automatic response (full duplex/half duplex mode).
Supports 8 independent sockets simultaneously.
Internal 32Kbytes Memory for Tx/Rx Buffers.
Power off mode: support.
Network wake: support.
SPI interface (SPI MODE 0, 3), convenient connection with MCU
