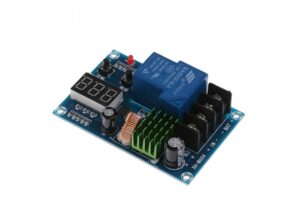

ماژول کنترل شارژ باتری دیجیتال 6 الی 60 ولت مدل XH-M604

از این ماژول می توان می توان برای شارژ انواع باتری های لیتیومی، خشک، اسیدی، نیکل-کادمیوم و … استفاده کرد.

Introduction

Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery
Dimension:81*54*18mm

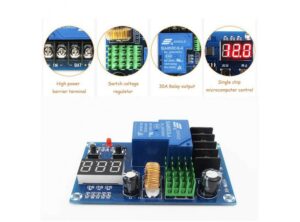

Specification

Use: In the set voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:

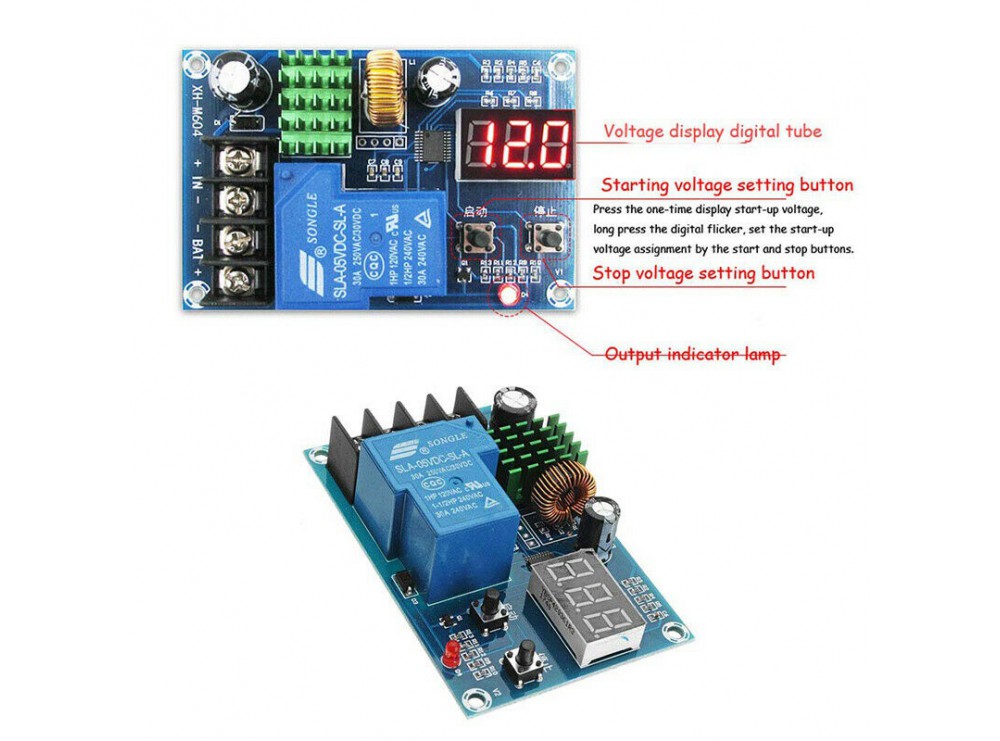

Normal display voltage state, press to a starting voltage button, to display the start charging voltage. long-press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button, to display the Stop charging voltage. long-press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error:
Energized state while holding down the start/stop button, digital display 888, which is the factory setting.

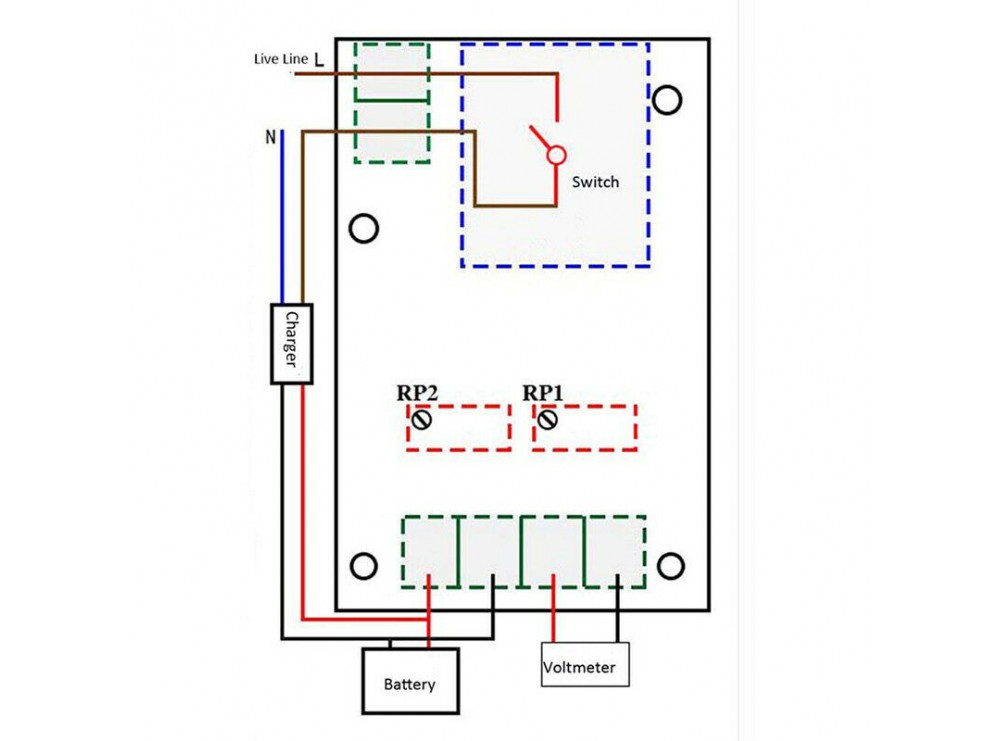

Potentiometer Adjustment:
1. RP1: adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
2. RP2: adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
