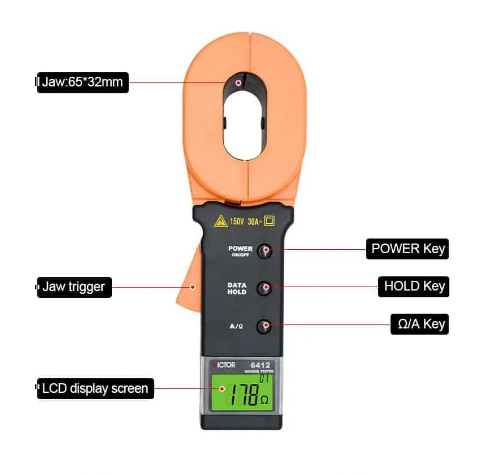

ارت تستر ویکتور مدل VICTOR 6412 دارای مشخصات فنی زیر است:
| Measure mode | Measuring range | Resolution | Basic accuracy | |
|
Resistance |
0.010-0.099Ω | 0.001Ω | ±(1%+0.01Ω) | |
| 0.10-0.99Ω | 0.01Ω | ±(1%+0.01Ω) | ||
| 1.0-49.9Ω | 0.1Ω | ±(1.5%+0.1Ω) | ||
| 50.0-99.5Ω | 0.5Ω | ±(2%+0.5Ω) | ||
| 100-199Ω | 1Ω | ±(3%+1Ω) | ||
| 200-395Ω | 5Ω | ±(6%+5Ω) | ||
| 400-590Ω | 10Ω | ±(10%+10Ω) | ||
| 600-1000Ω | 20Ω | ±(20%+20Ω) | ||
|
Current |
0-99mA | 1mA | ±(2.5%+5mA) | |
| 100-299mA | 1mA | ±(2.5%+10mA) | ||
| 0.30-2.99mA | 10mA | ±(2.5%+0.02A) | ||
| 3.00-9.99A | 10mA | ±(2.5%+0.03A) | ||
| 10.00-20.00A | 10mA | ±(2.5%+0.05A) | ||
| Special Function | VICTOR6412 | |||
| Low battery indication | √ | |||
| Data hold/storage | √ | |||
| Auto power off | √ | |||
| Relative humidity | 10%~90% | |||
| Working environment | -10°C~55°C | |||
| Outer magnetic field | less than 40A/m | |||
| Outer electric field | less than 1V/m | |||
| Unit measuring time | 1s | |||
| Resistance measuring frequency | more than 1KHz | |||
| Highest Resolution of Resistance measuring | 0.001Ω | |||
| Frequency of measured current | 50Hz sine | |||
| Storage measuring data | 50group | |||
| Setting range of resistance critical value alarm | 1-199Ω | |||
| Setting range of current critical value alarm | 1-499mA | |||
| Protection scale | Double insulated | |||
| Operation way | Auto range | |||
| Clamp size | 28mm | |||
| Power | 6V(4*1.5V) | |||
